Marina design software for slips and docks

Generate a slip row, draw the walks, gangways and pilings on the aerial, then get the take-off, quote and drawings.

Create a free accountTalk to us about a marina
  • Slip-row generator
  • Free account
  • Layout, not slip rentals
Boat Slip Layout · Marina Slip Row (demo)6 slips · 1,328 sq ft

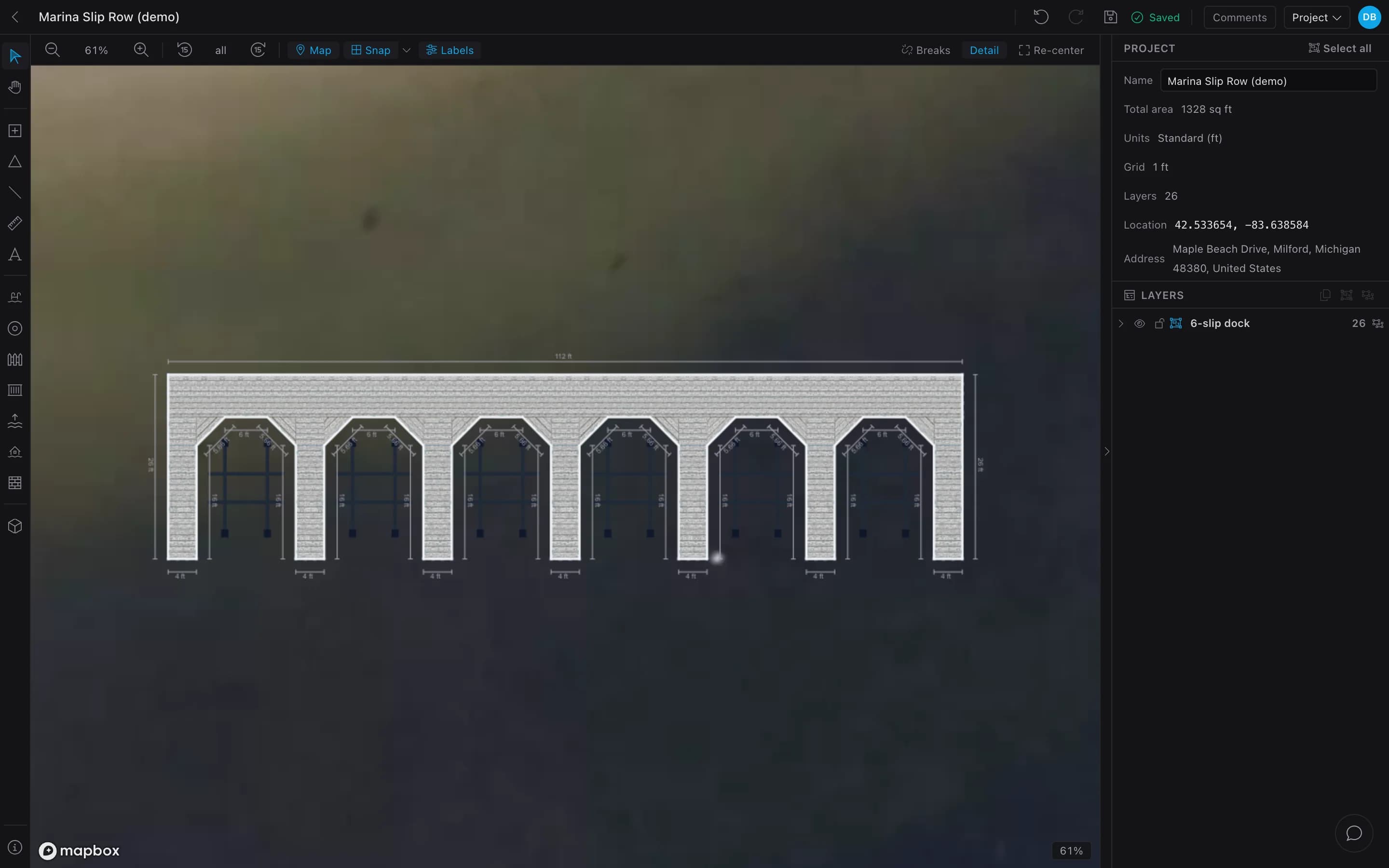

A six-slip floating row generated by Boat Slip Layout on a satellite view: a 112 ft main walk with seven 4 ft fingers, corner braces, a boat lift in each slip, and the row dimensioned 26 ft deep.
  1. 112 ft overallSix slips off one main walk
  2. Lift in each slipOptional, placed by the generator
  3. 4 ft fingersOne more finger than slips

Pick Boat Slip Layout, set the row and click to place it. Floating or pier, with lifts, cleats and bull rail.

Then the walks, gangways and pilings.

Site & map guide
  • Path docks for main walks and bends
  • Gangways, and pilings that re-space as you resize
  • Wave attenuators, breakwaters, seawalls and riprap
  • Share links for owners and boards to comment

The same take-off, quote and drawings.

Counts, prices and scaled PDF pages come from the layout. Shown here on a demo L‑dock.
Material estimator
The material take-off of a 4-section, 480 sq ft dock: 58 floats, 148 deck boards, 204 hardware items, and lumber to buy by size with cuts and waste.
T-1Take-off
58 floats · 148 deck boards · 204 hardware items
The quote on a proposal page: hardware and bumper lines, then labor at $18 × 480 sq ft, 20% margin, 6% tax and a total of $38,748.50.
Q-1Quote
Total $38,748.50 with labor, margin and tax
A proposal page with the dimensioned dock plan: setbacks of 41.2 and 48.75 ft, high and low water lines, lot lines, a depth line and a north arrow.
A-1Plan view
Scaled, with your site markup.
Side elevation of the dock and gangway: the lakebed drawn from depth soundings, high water at 0 ft and low water at −2 ft, and a scale bar.
A-2Profile
From soundings you enter.

Layout software, not marina management.

Dock Builder

  • Slips, finger piers and walks
  • Take-off and quote
  • Permit and proposal drawings

Marina management software

  • Not in Dock Builder: Slip reservations and rentals
  • Not in Dock Builder: Tenant billing
  • Not in Dock Builder: Fuel dock or store sales

No wave, load or structural analysis, and no survey data: depths come from soundings you enter. The automatic take-off assumes wood-framed floating or pier docks.

Is there free marina layout software?

Yes. The designer, slip-row generator and aerial map included, is free with no account. A free account adds the take-off, quotes and PDFs.

Does it work in metric?

Yes. With an account, each project can be metric or imperial.

Lay out the next slip row today.

Create a free account and generate a row on your own site, or talk to us about your team.
